Fits TVs
37" to 75"
VESA Range
200x100mm to 600x400mm
Tilt
0°/-7°
Weight Capacity
132 lbs (60kg)

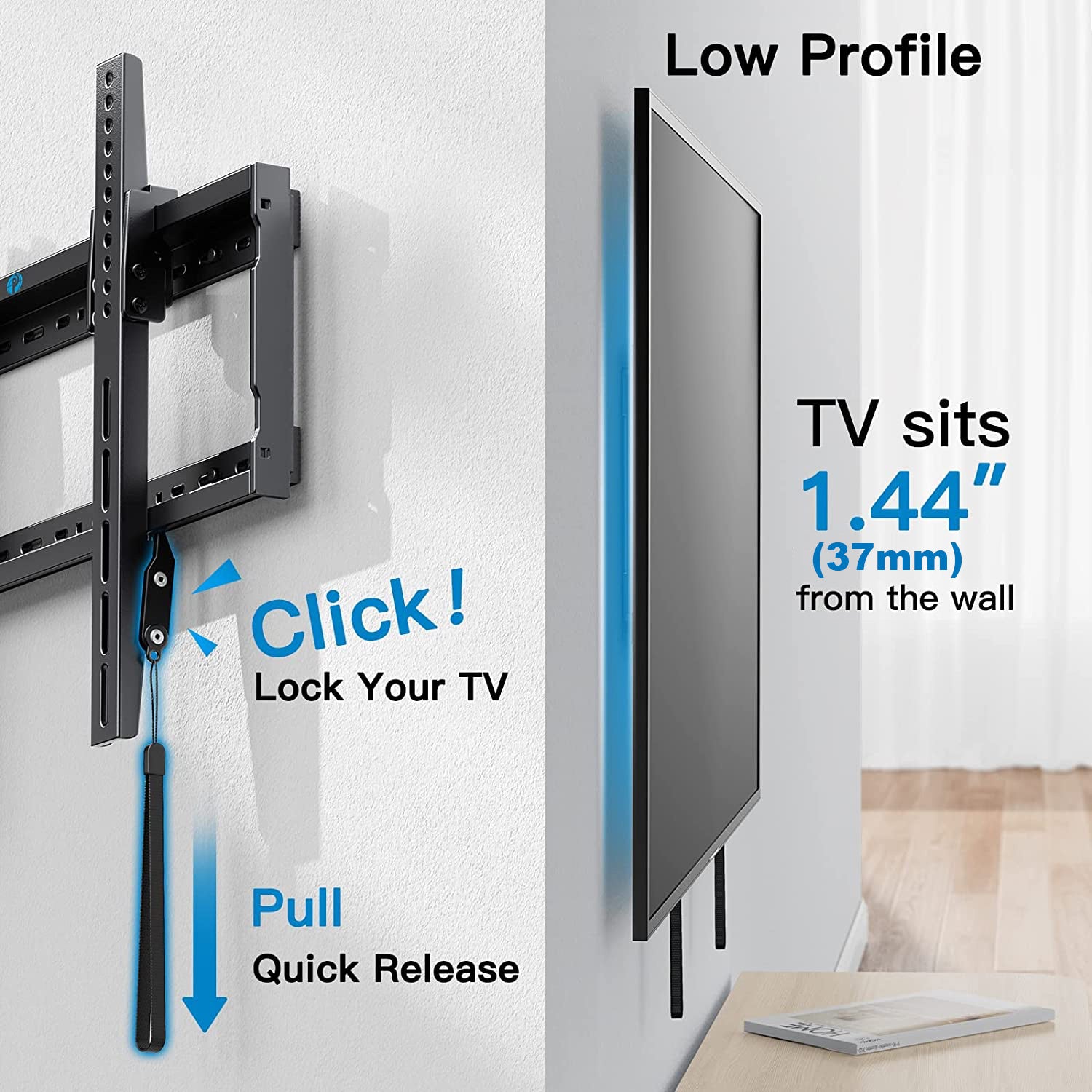

1. Low-profile design stands 1.44" (37mm) close to the wall which enhances the ultra-thin look.

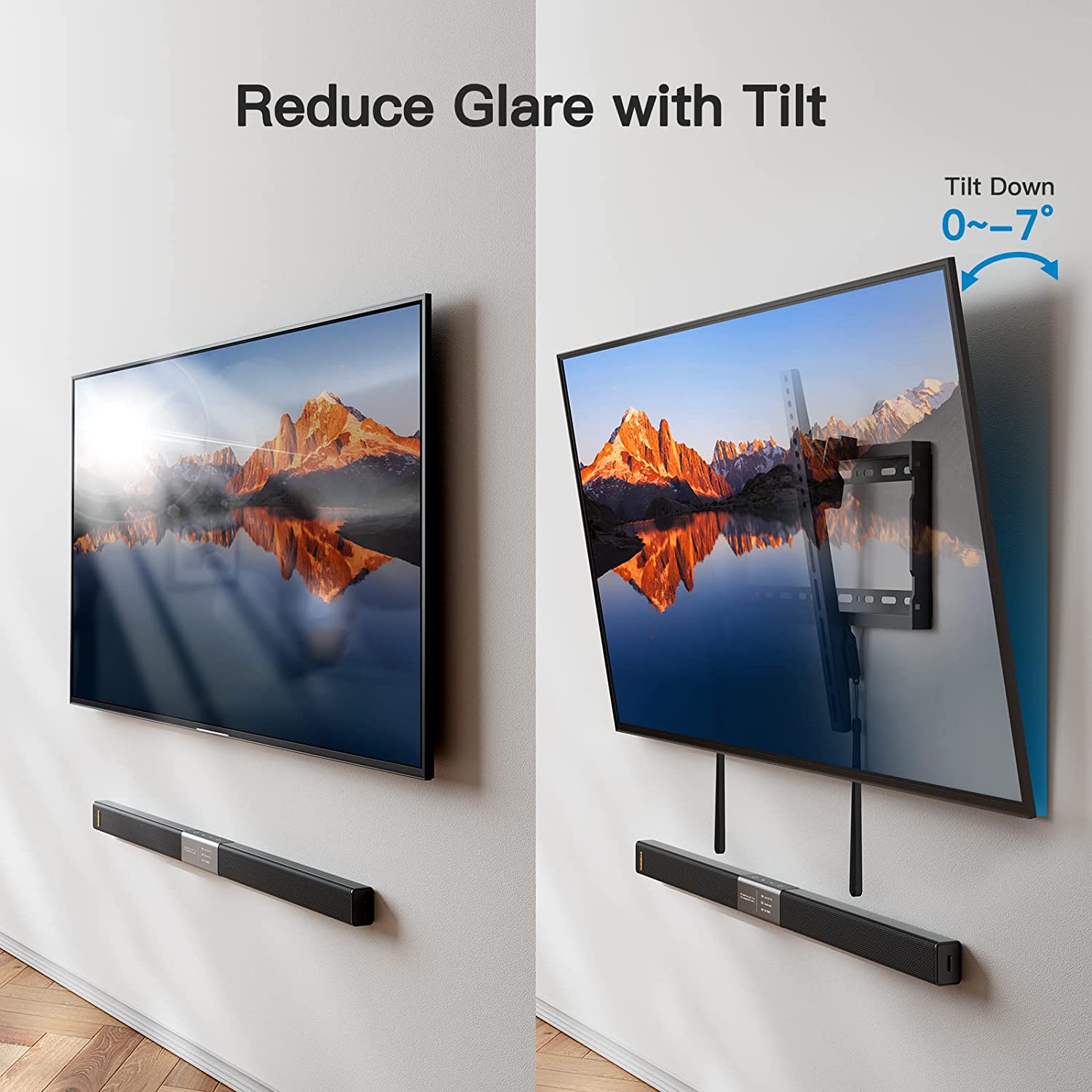

2. Tilt 0°/-7° helps reduce glare from lighting and windows for a more enjoyable viewing experience.
3. Open wall plate design allows directly mounting over electrical outlets for a cleaner look.

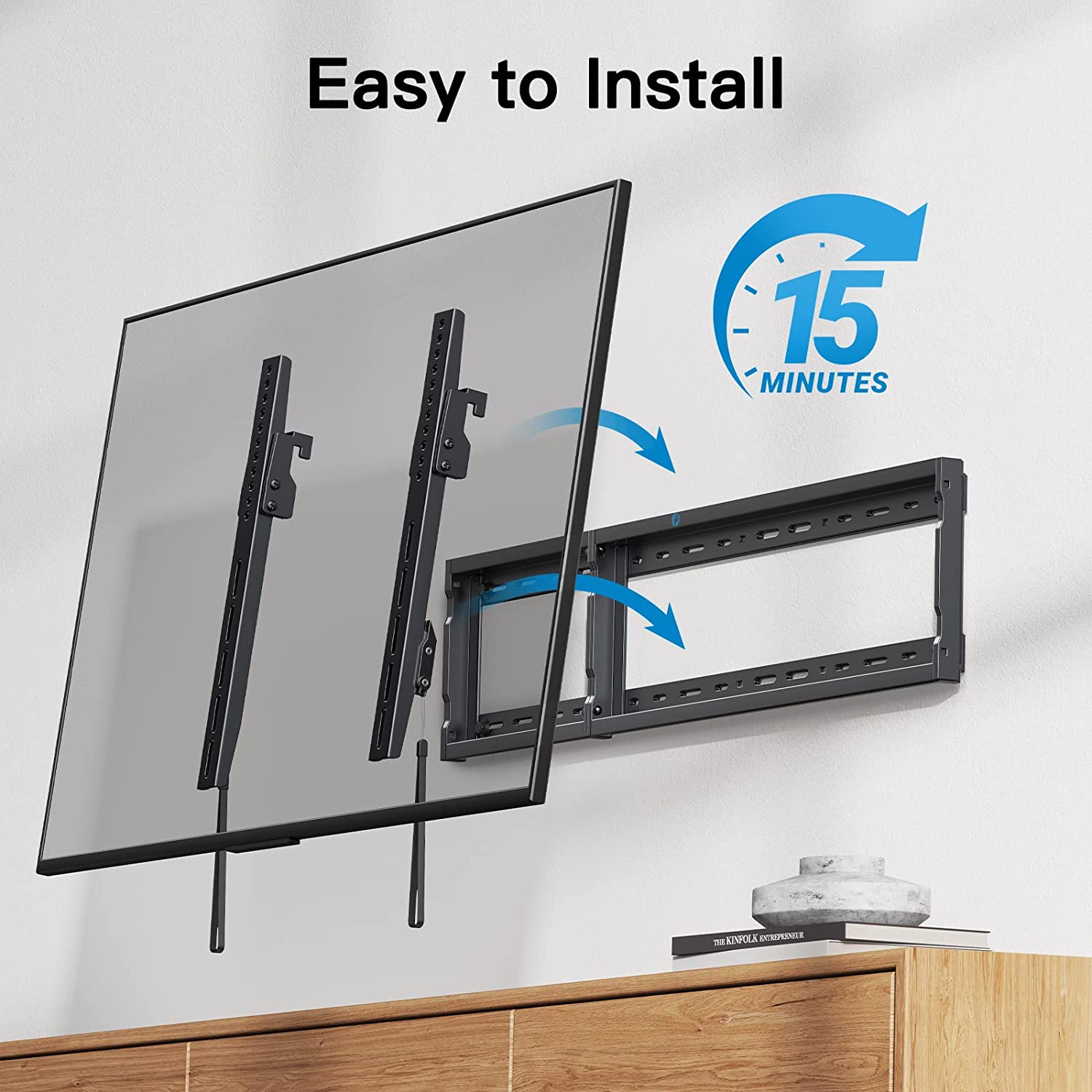

4. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
5. We provide a 5-year warranty and professional customer support.
| Product Compatibility | |
| Brand | PIPISHELL |
| Model Number |
PILTK4-C
|
| Type | Tilt |
| TV Size Range | 37" to 75" |

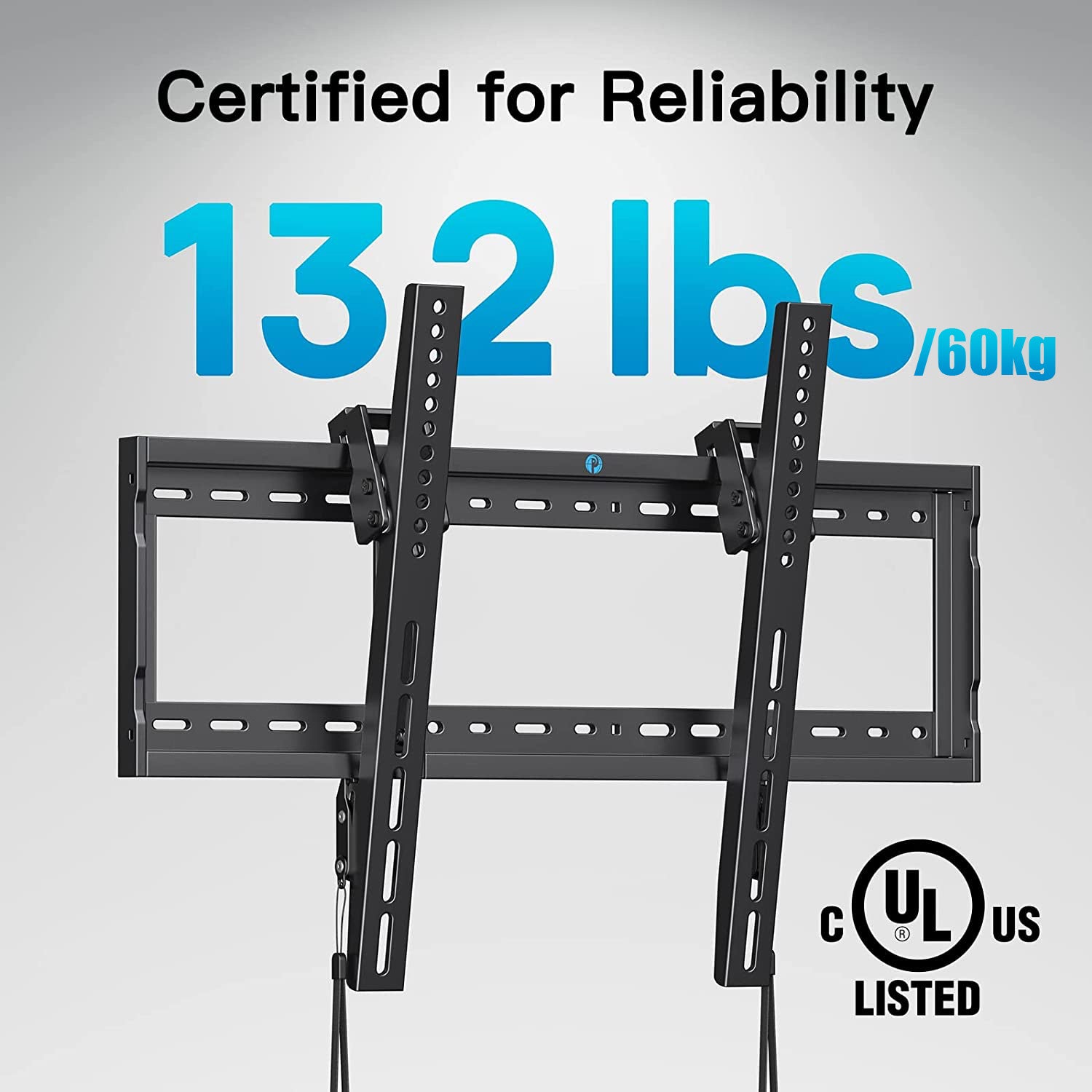

| Maximum TV Weight | 132 lbs (60kg) |

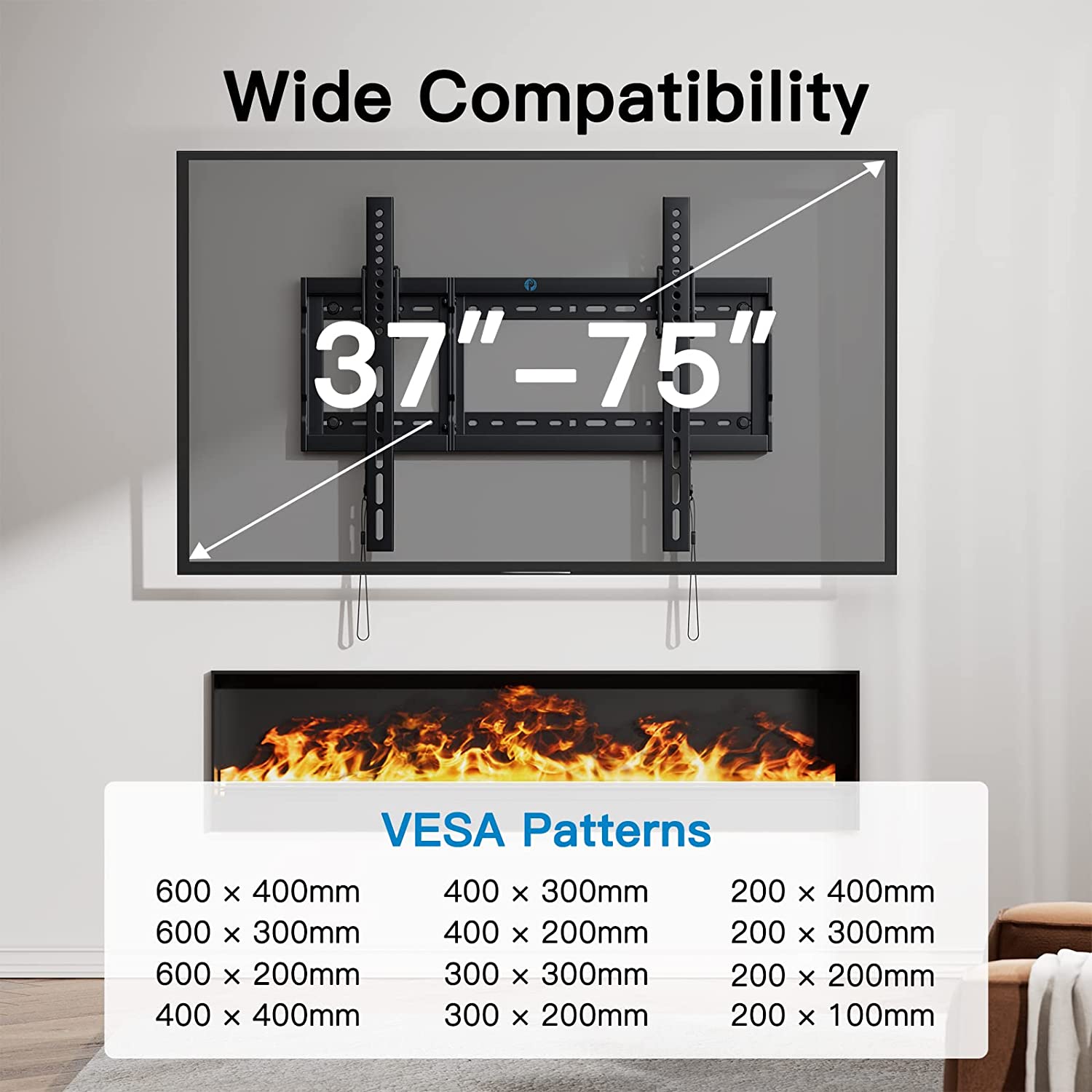

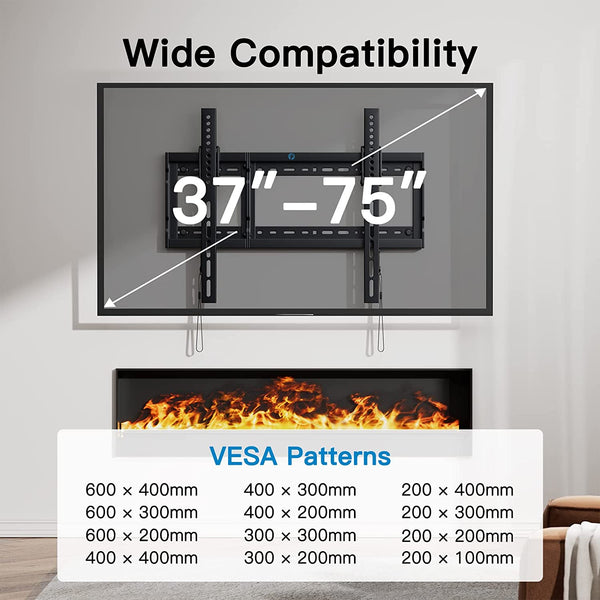

| VESA Range | 200x100mm,200x200mm,200x300mm,200x400mm,300x200mm,300x300mm,400x200mm,400x300mm,400x400mm,500x400mm,600x400mm |

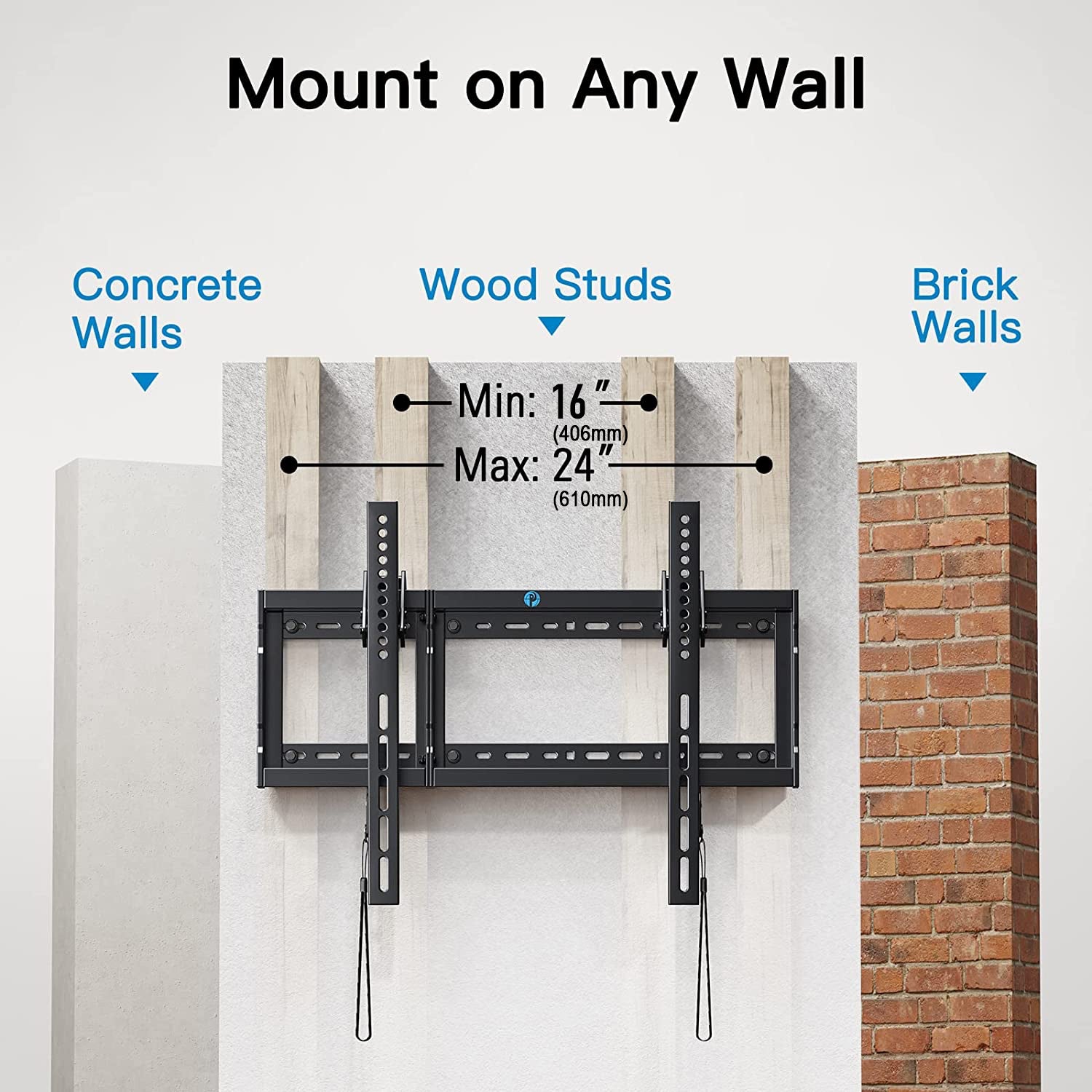

| Wall Type | Wood Studs 16" (406mm), 18" (457mm), 24" (610mm) on Center, Concrete and Block Walls |
| Product Information | |
| Type | 0°/-7° |
| Profile | 1.44" (37mm) |
| Wallplate Dimensions | 25.39" x 8.46" (645mmx215mm) |
| Product Weight | 3.37 lbs (1.53 kg) |
| Package Dimension | 17.48" x 8.82" x 1.69" (444mm x 224mm x 43mm) |
