Fits TVs
37" to 75"
VESA Range
200x100mm to 600x400mm
Extension
14.84"(377mm)
Tilt +5°/-15°
Swivel +/-45°
Weight Capacity
132 lbs(60 kg)
1. PILFK1-C full-motion design enables you to adjust the angle of your TV based on your viewing position in the room.
2. Low-profile design extends from 3"(76mm) to 14.84"(377mm) from the wall.
3. Maximum flexibility tilt +5°/-15°, swivels +/-45° (max. swivel angle depends on TV size) and level adjusts +/-3° for perfection tweaking.
4. Universal VESA mounting systems compatible from 200x100mm to 600x400mm.
5 Dual articulating arms for added strength to hold your TV. weight capacity 132 lbs(60 kg).
6. Mounting hardware and a detailed illustrated installation manual is included.
7. 5-year Limited warranty and professional product support.
| Product Compatibility | |
| Brand | PIPISHELL |
| Model Number |
PILFK1-C
|
| Type | Full Motion |
| TV Size Range |
37" to 75"
|
| Maximum TV Weight | 132 lbs(60 kg) |
| VESA Range | 200x100mm/200x200mm/200x300mm/200x400mm/300x200mm/300x300mm/300x400mm/400x200mm/300x400mm/400x300mm/400x400mm/500x300mm/600x200mm/600x400mm |
| Wall Type | Wood Studs 12"(305mm),16"(406mm) on Center, Concrete and Block Walls |
| Product Information | |
| Swivel | +/-45° |
| Tilt | +5°/-15° |
| Profile | 3"(76mm) |
| Extension | 14.84"(377mm) |
| Level | +/-3° |
| Wallplate Dimensions | 17.13" x 6.89"(435mmx175mm) |
| Product Weight | 12.02 lbs (5.45 kg) |
| Product Dimension | 9.61" x 6.22" x 2.4"(444mm x 278mm x 70mm) |

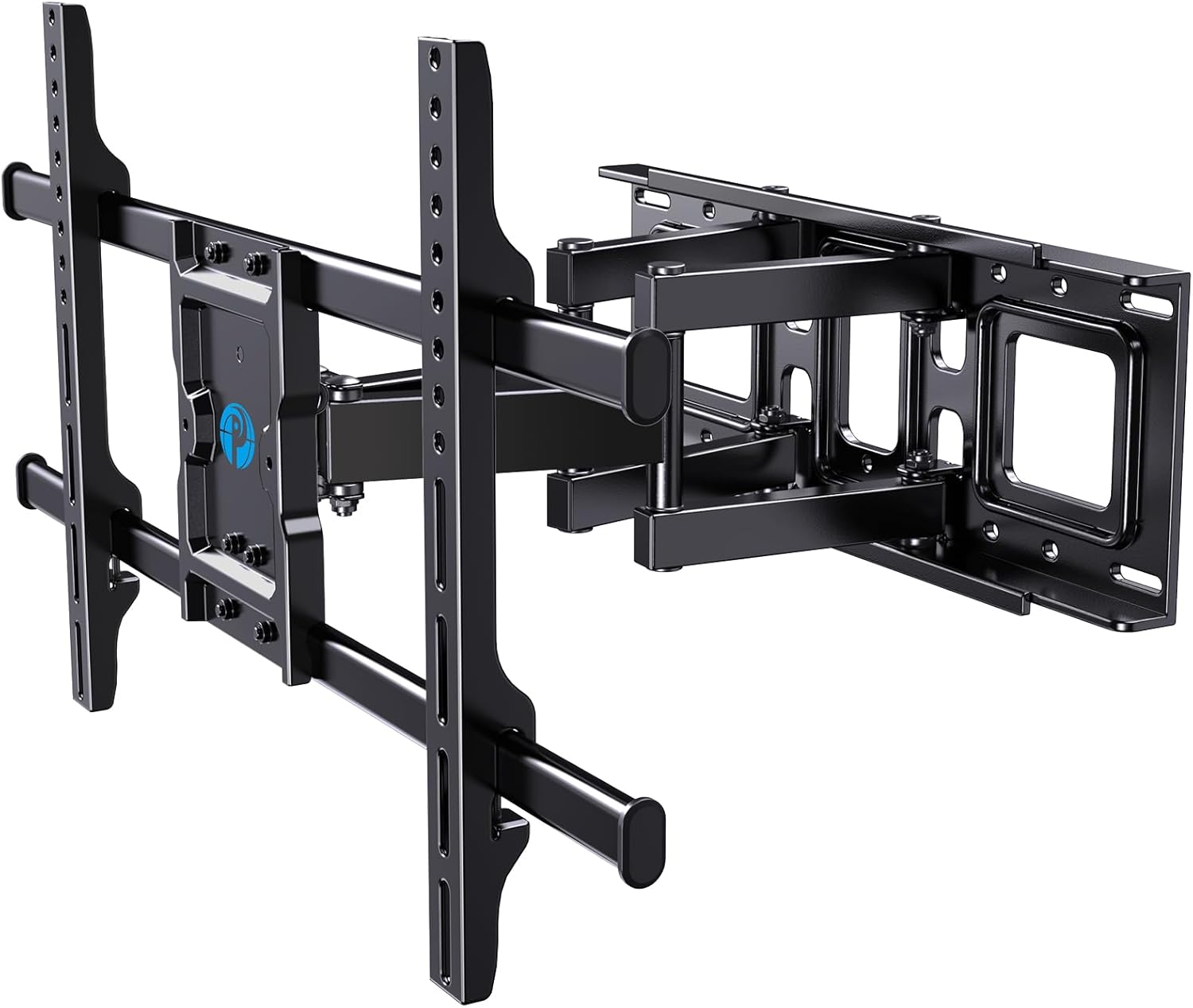

The Pipishell Heavy-Duty Articulating TV Wall Mount is designed with strength and versatility in mind. And the TV Mount can be tilted and turned in many different directions you require to accommodate normal TV shows, video gaming, fitness programs, video chats and more.
Note: Don't use electric drill.
Note: This TV wall mount fits for use in wood stud and solid concrete wall. DO NOT install into drywall alone.
