Fits TVs
26" to 65"
VESA Range
100x100mm to 400x400mm
Extension
15.34" (390mm)
Tilt +5°/-15°
Swivel +/-45°
Weight Capacity
99 lbs (45 kg)

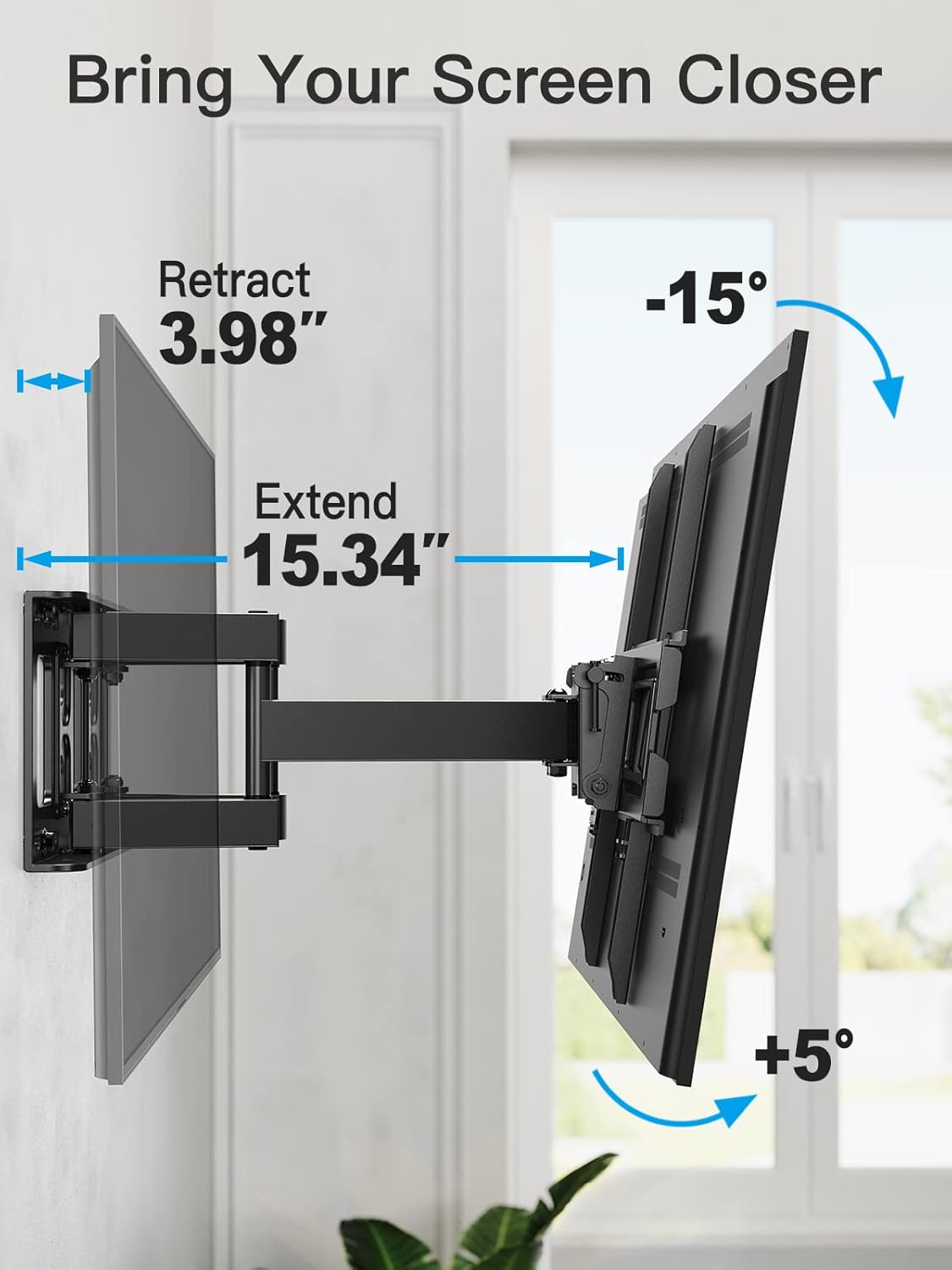

1. Low-profile design retracts from 15.34" (390mm) to 3.98" (101mm) away from the wall, which enhances the ultra-thin look and creates space in the room.

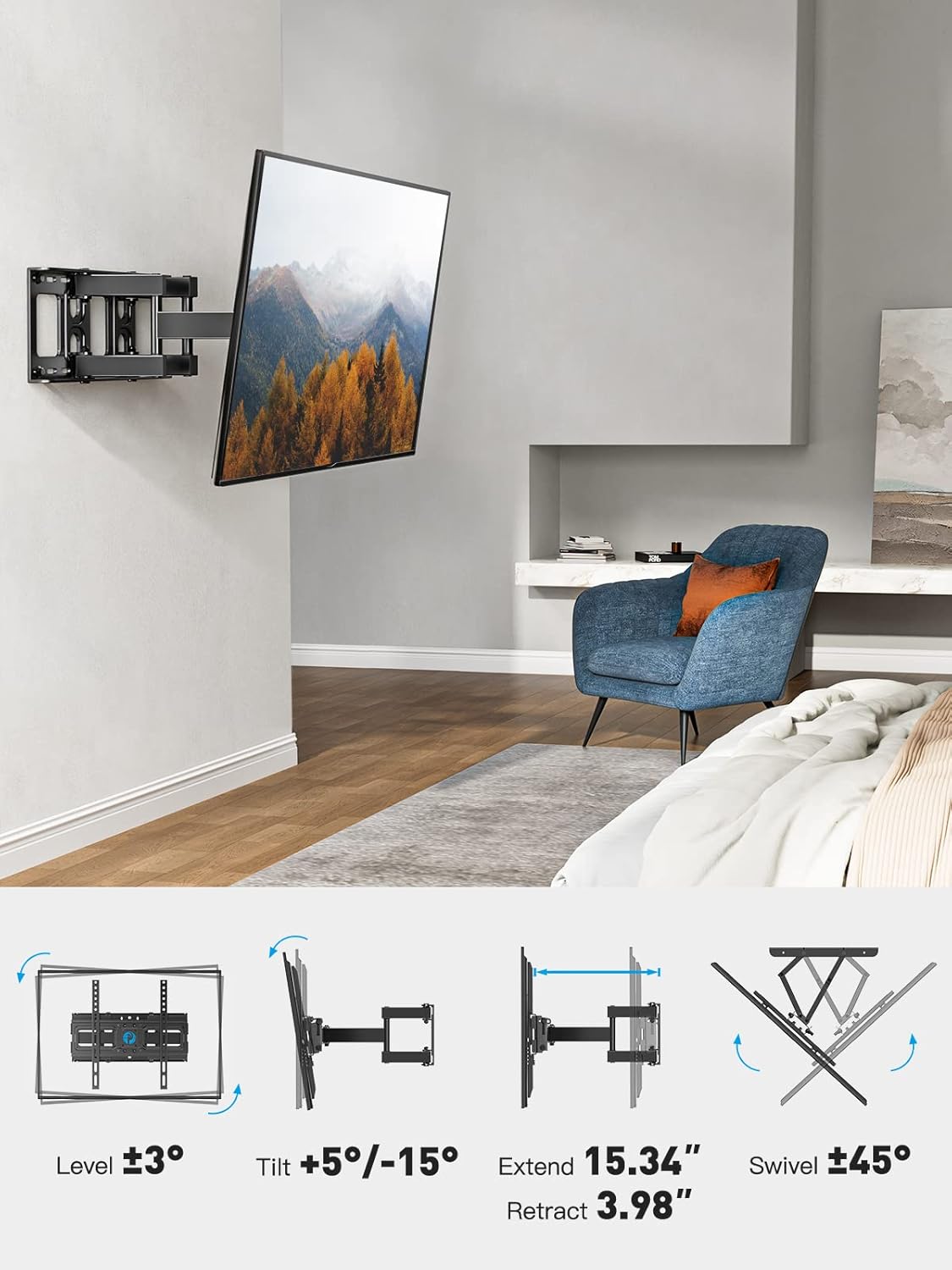

2. Maximum flexibility tilt +5°/-15°, swivels +/-45° (max. swivel angle depends on TV size) and level adjusts +/-3° for perfect placement.
3. PIMFK1-N1-CA is built with dual articulating arms for added strength to hold up larger TVs.

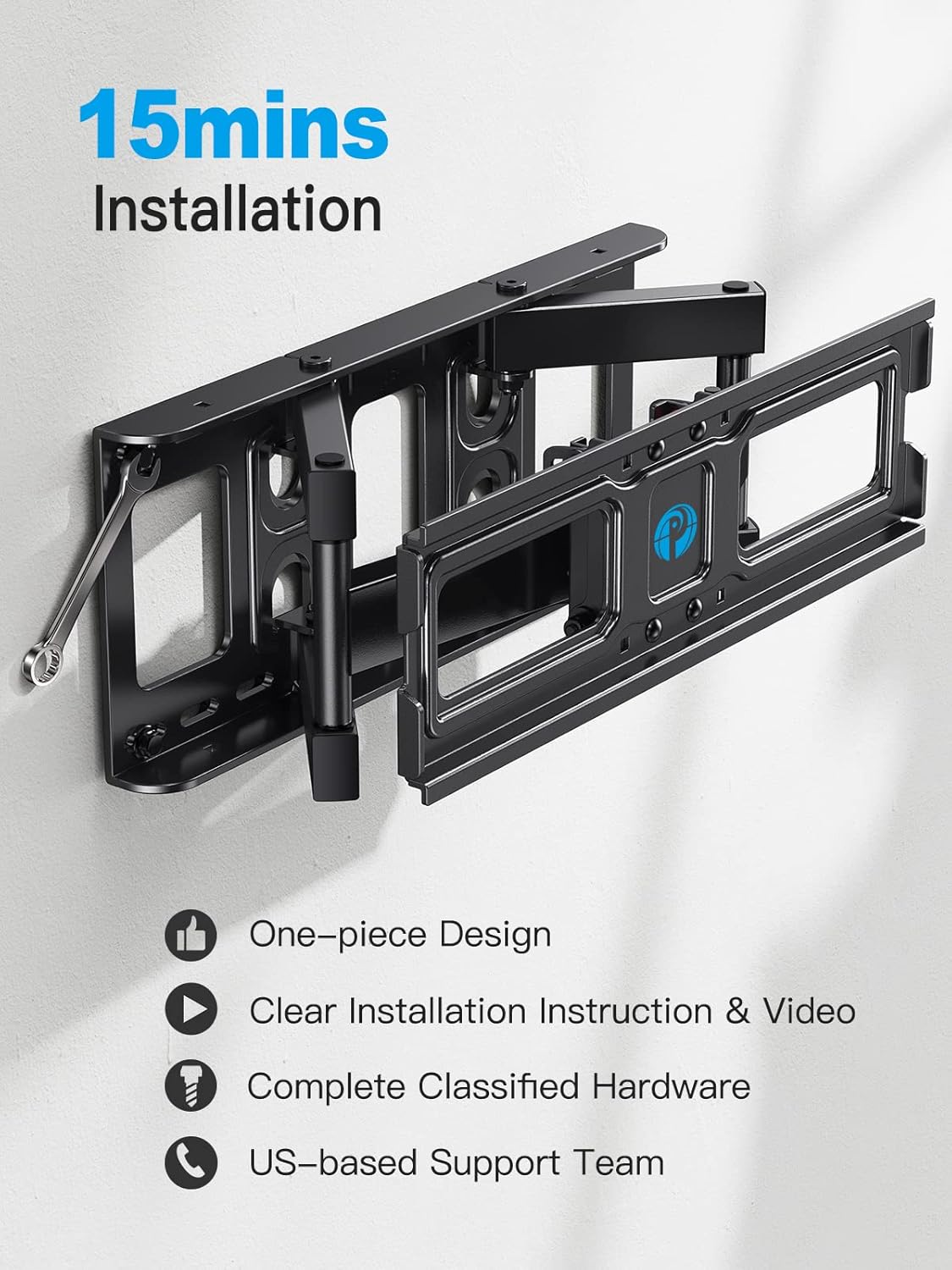

4. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
5. We provide a 5-year warranty and professional customer support.
| Product Compatibility | |
| Brand | Pipishell |
| Model Number |
PIMFK1-N1-CA
|
| Type | Full Motion |
| TV Size Range | 26" to 65" |
| Maximum TV Weight | 99 lbs (45 kg) |

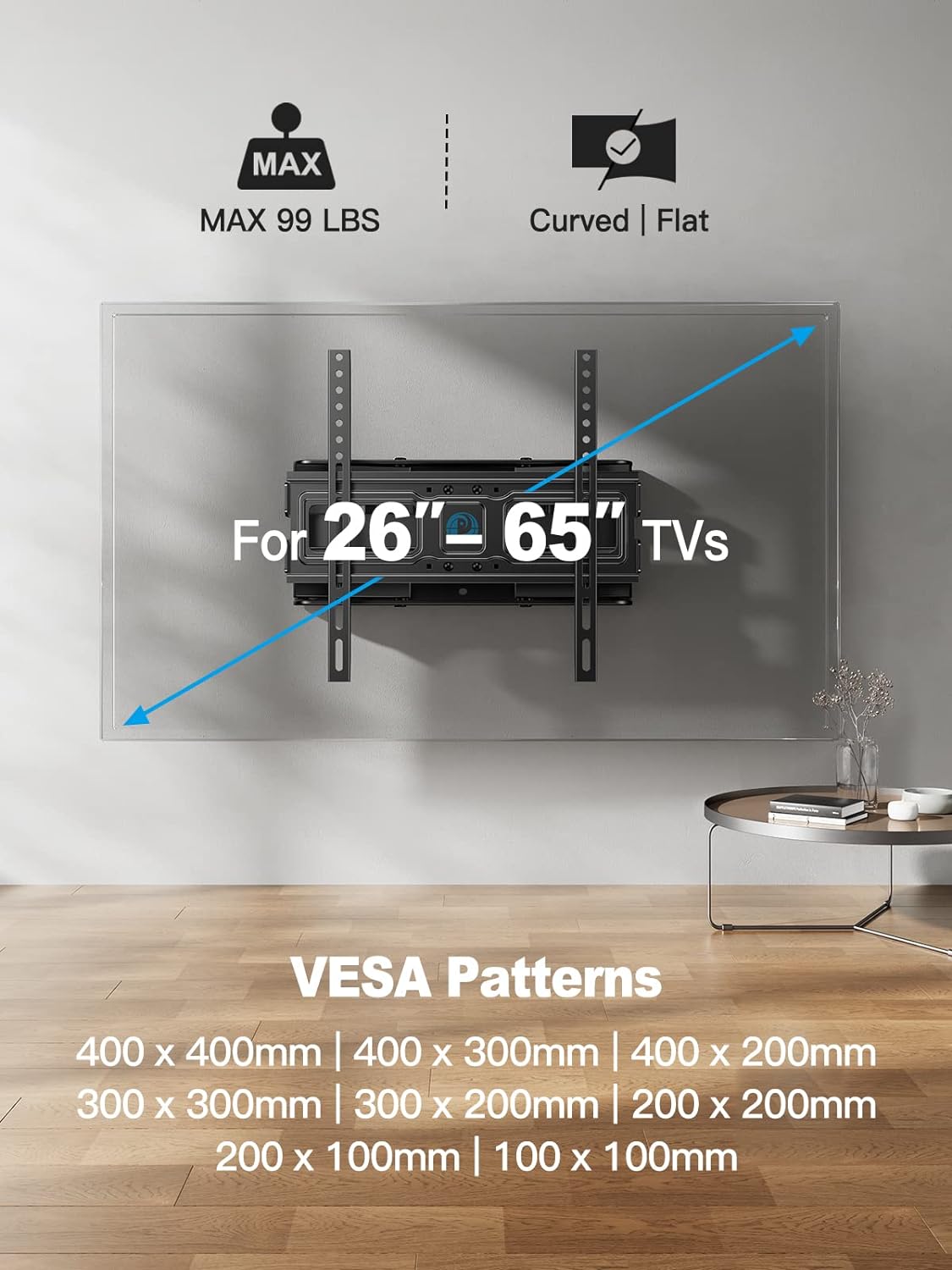

| VESA Range | 100x100mm/100x200mm/200x100mm/200x200mm/200x300mm/300x200mm/300x300mm/400x200mm/400x300mm/400x400mm |

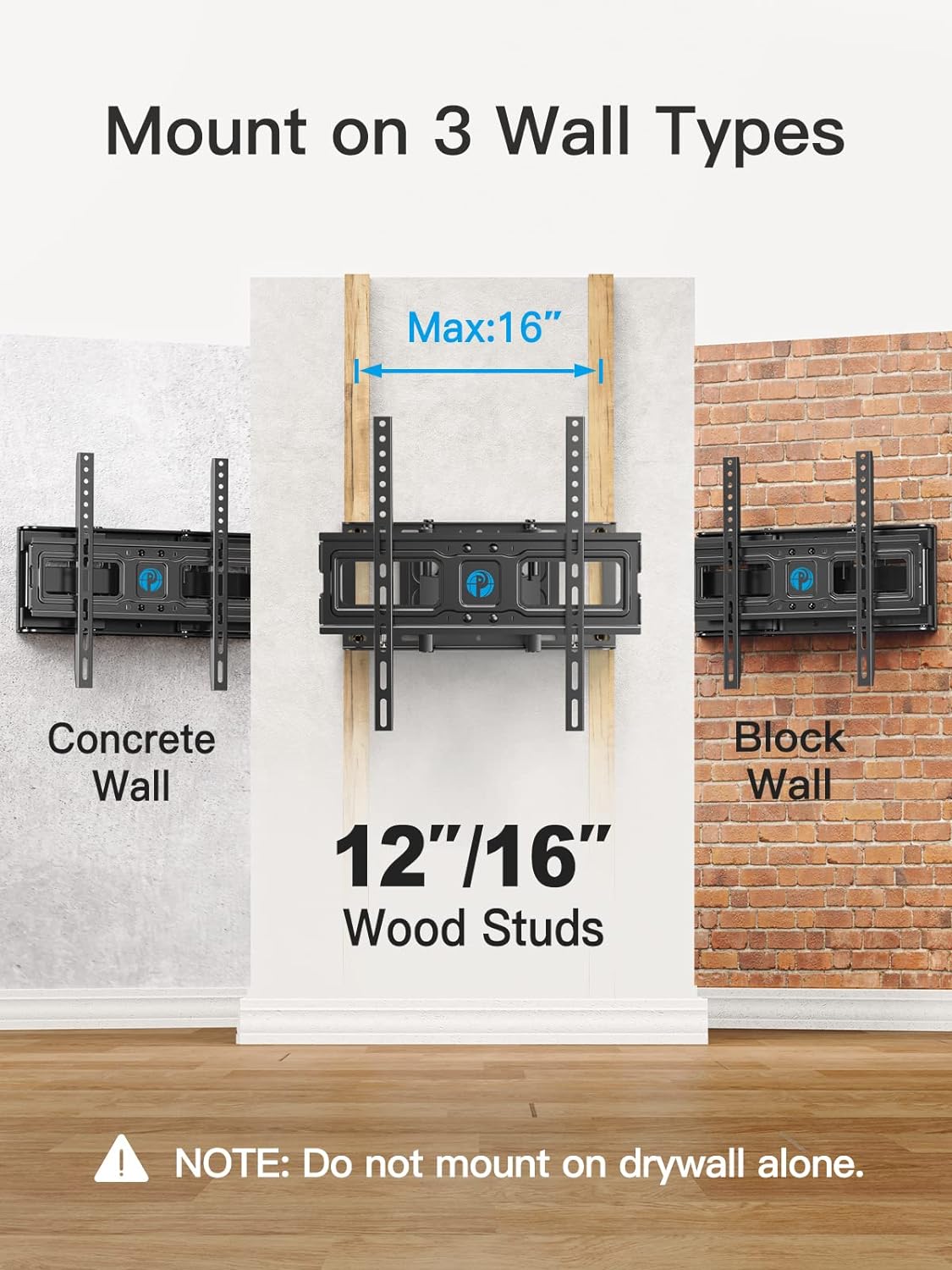

| Wall Type | Wood Studs 12" (305mm), 16" (406mm) on Center, Concrete and Block Walls |
| Product Information | |
| Swivel | +/-45° |
| Tilt | +5°/-15° |
| Profile | 3.98" (101mm) |
| Extension | 15.34" (390mm) |
| Level | +/-3° |
| Wallplate Dimensions | 17.05" x 6.97" (433mm x 177mm) |
| Product Weight | 9.39 lbs (4.26 kg) |
| Package Dimension | 17.32" x 8.19" x 3.15" (440mm x 208mm x 80mm) |
Pipishell TV Wall Mount is a comprehensive solution for anyone seeking to maximize their home entertainment experience. Designed for 26-65 inches and compatible with LED, LCD, OLED, and 4K TVs, this wall mount enables your TV secure and at the optimal viewing position.
The TV wall mount offers enhanced safety and ease-of-use with features like dual hooks and security locks for sturdy mounting, and a tilt knob for effortless adjustments. Its heavy-duty steel construction makes it a reliable choice for securely displaying your TV.
Our PIMFK1 wall mount tv bracket, with its secure features and effortless adjustability, is an essential enhancement to your home entertainment experience.
| TV size & Max load | Fits 26 to 65 inch flat or curved LED OLED QLED 4K TVs weight up to 99lbs/ 45kg |
| Wall type | 12/16 inch wood stud wall, concrete wall, brick wall, DO NOT install on drywall alone |
| VESA | 100x100mm. 200x100mm. 200x200mm. 300X200mm. 300x300mm. 400x200mm. 400x300mm. 400X400mm(4"x4"/8"x4"/8"x8"/12"x8"/12"x12"/16"x8"/16"x12"/16"x16") |

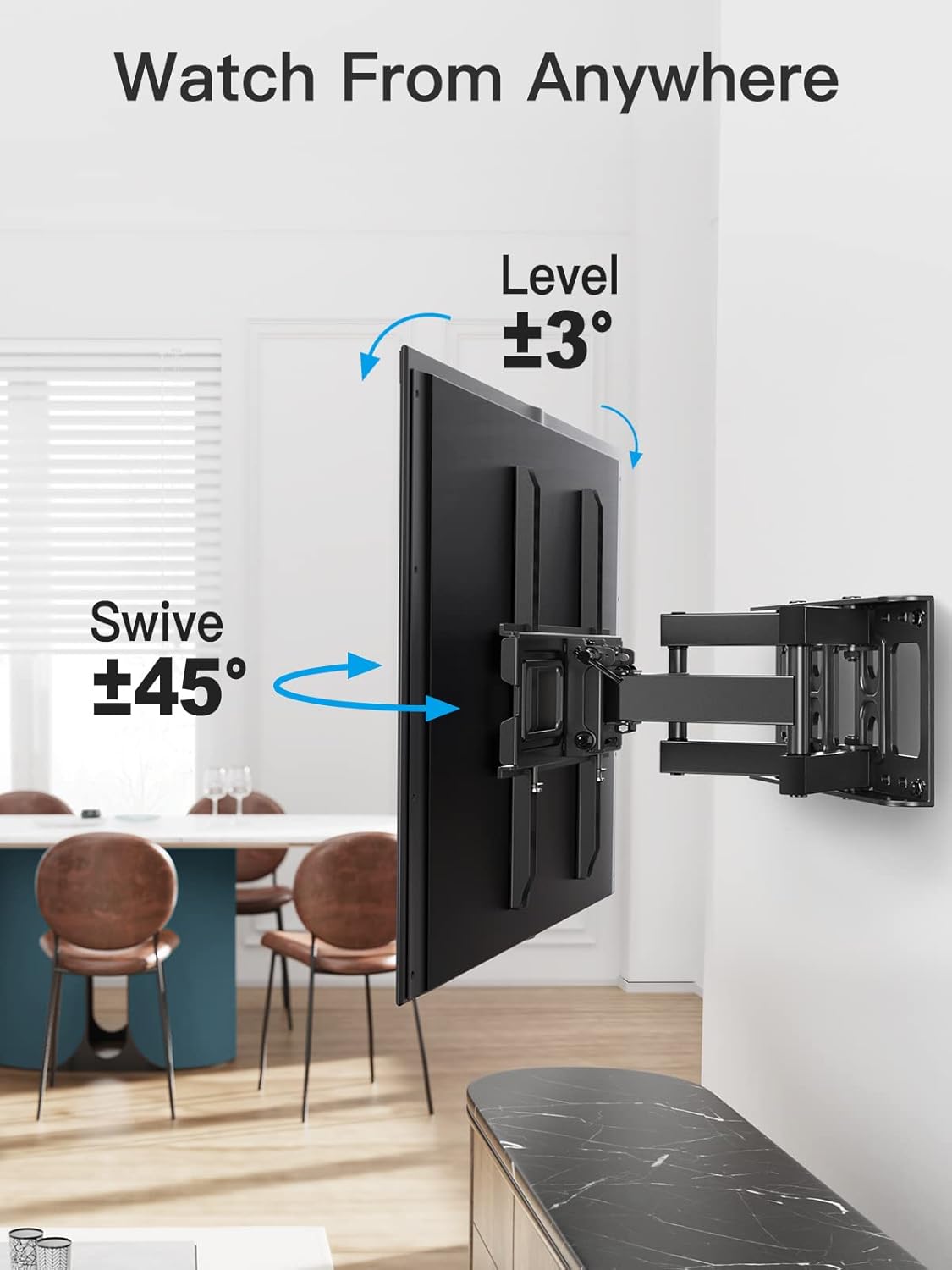

| Swivel range | 45 degrees left or right for different viewing requirements and rotates 3 degrees for perfect TV level adjustment |
| Tilt range | 5 degrees forward and 15 degrees backward |
| Distance to wall | Extends out 15.34 inch max and retracts to 3.98 inch back from the wall to save space |

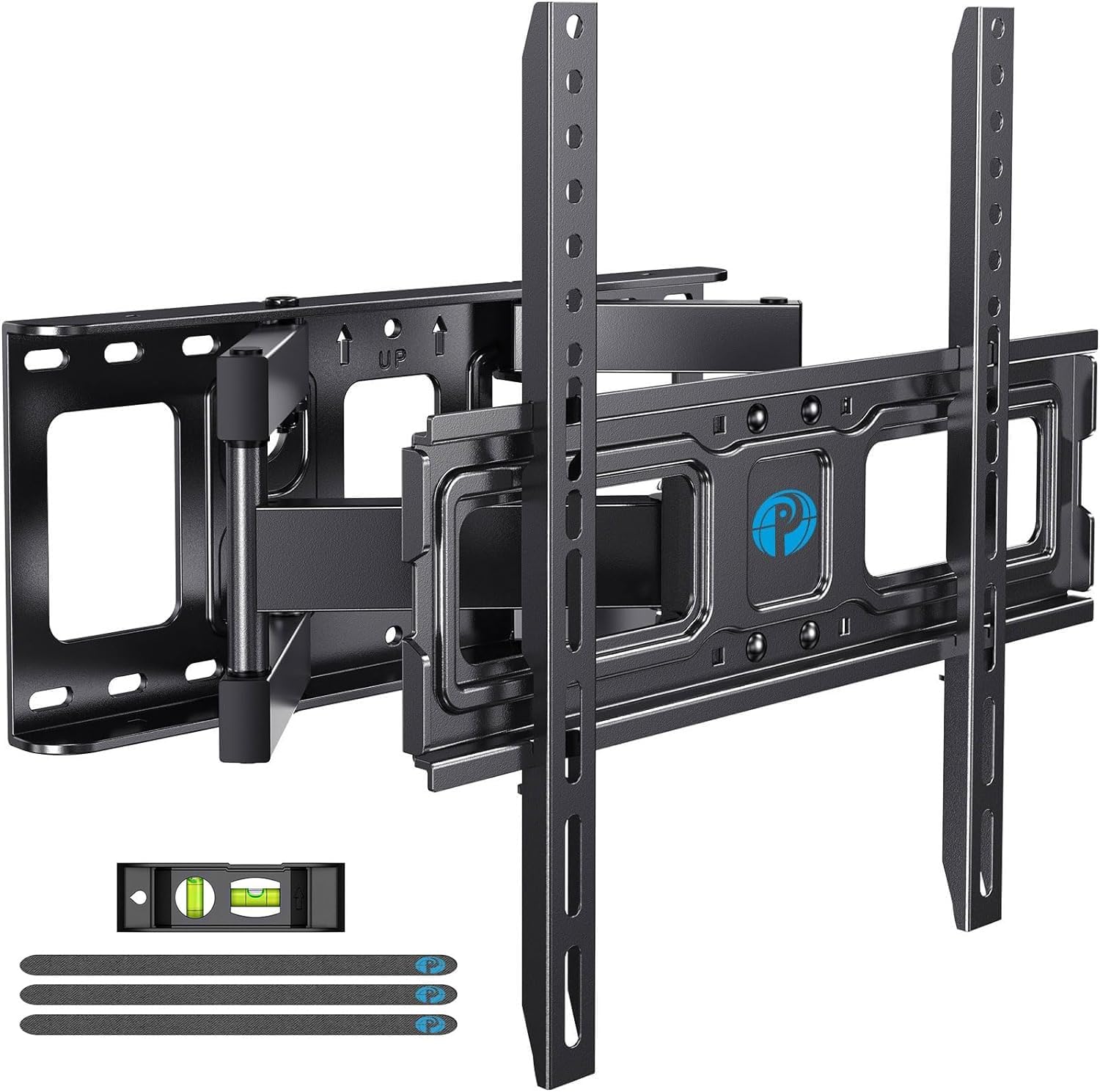

| Package includes: | 1x TV wall mount / 1x Standard mounting hardware /1x 3-Axis magnetic bubble level / 5x Cable ties / 1x User manual |
