Fits TVs
26" to 60"
VESA Range
75x75mm to 400x400mm
Extension
17" (432mm)
Tilt +5°/-15°
Swivel +/-90°
Weight Capacity
77 lbs (35 kg)
1. Low-profile design extends from 2.36" (60mm) to 17" (432mm) away from the wall, which enhances the ultra-thin look and creates space in the room.

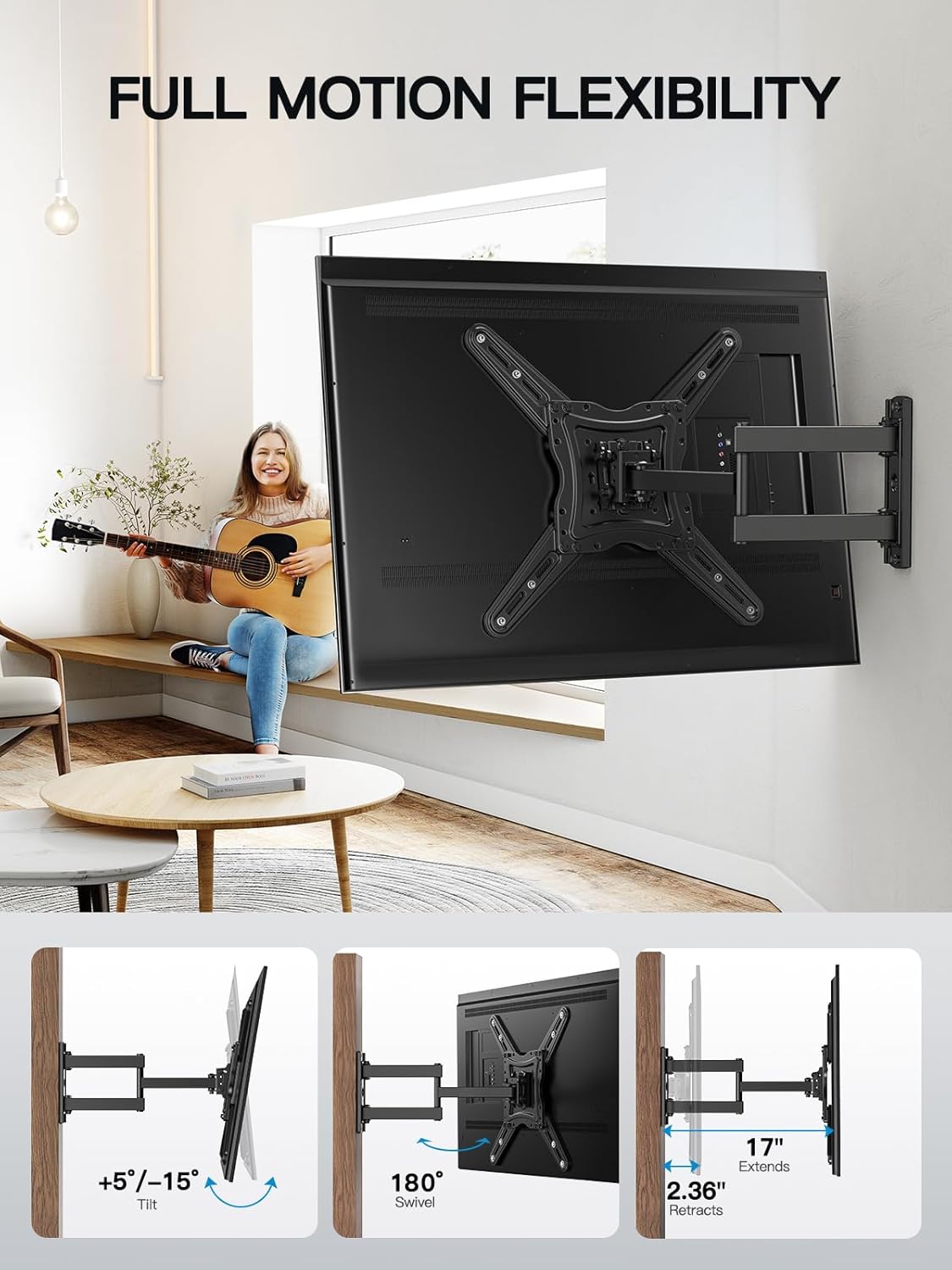

2. Maximum flexibility tilt +5°/-15°, swivels +/-90° (max. swivel angle depends on TV size).
3. Rotates 360° to landscape or portrait view, for a more convenient and productive viewing experience.
4. Easy installation that includes mounting hardware and a detailed illustrated installation manual that is actually useful.
5. We provide a 5-year warranty and professional customer support.
| Product Compatibility | |
| Brand | Pipishell |
| Model Number |
PIMF7-N1-CA
|
| Type | Full Motion |
| TV Size Range | 26" to 60" |
| Maximum TV Weight | 77 lbs (35 kg) |
| VESA Range | 75x75mm, 100x100mm, 100x200mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm |
| Wall Type | Wood Stud, Concrete and Block Walls |
| Product Information | |
| Swivel | +/-90° |
| Tilt | +5°/-15° |
| Profile | 2.36" (60mm) |
| Extension | 17" (432mm) |
| Level | +/-3° |
| Wallplate Dimensions | 8.66" x 2.17" (220mmx55mm) |
| Product Weight | 5.05 lbs (2.29 kg) |
| Package Dimension | 10.75" x 9.25" x 2.95" (273mm x 235mm x 75mm) |

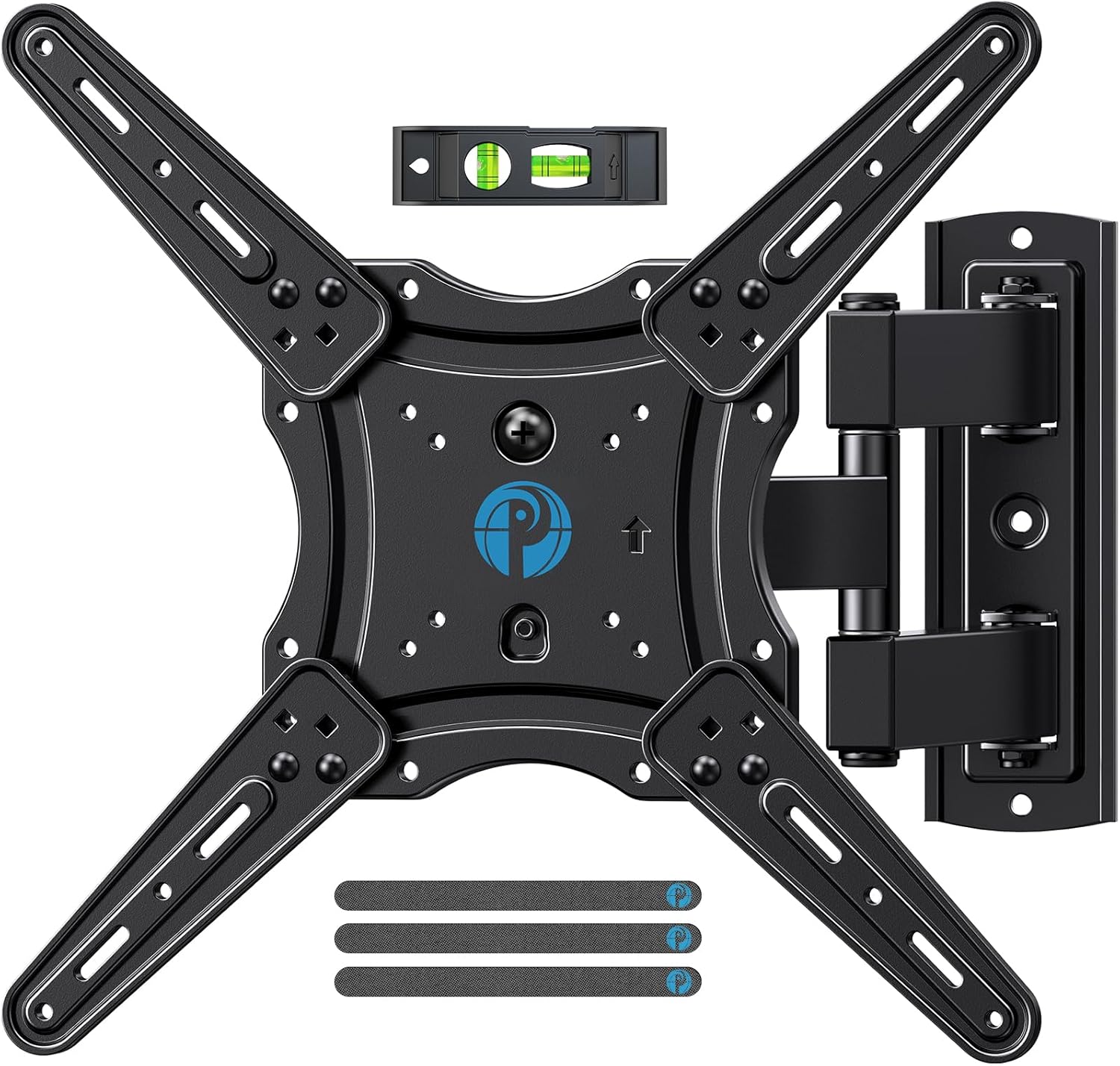

Featuring heavy-duty steel and thicker arms, the Pipishell PIMF7 full motion tv mount is a great choice for most 26"-60" flat or curved TVs up to 77 lbs. Tilt your screen +5°/-15° to reduce glare and swivel +/-90° to watch TV from any angle.
The long 17" extension can help bring your TV closer for viewing, while the 2.36" low-profile retraction distance can give your room a streamlined look. The single-stud design makes this TV mount ideal for corner mounting with less work than a dual arm mount.

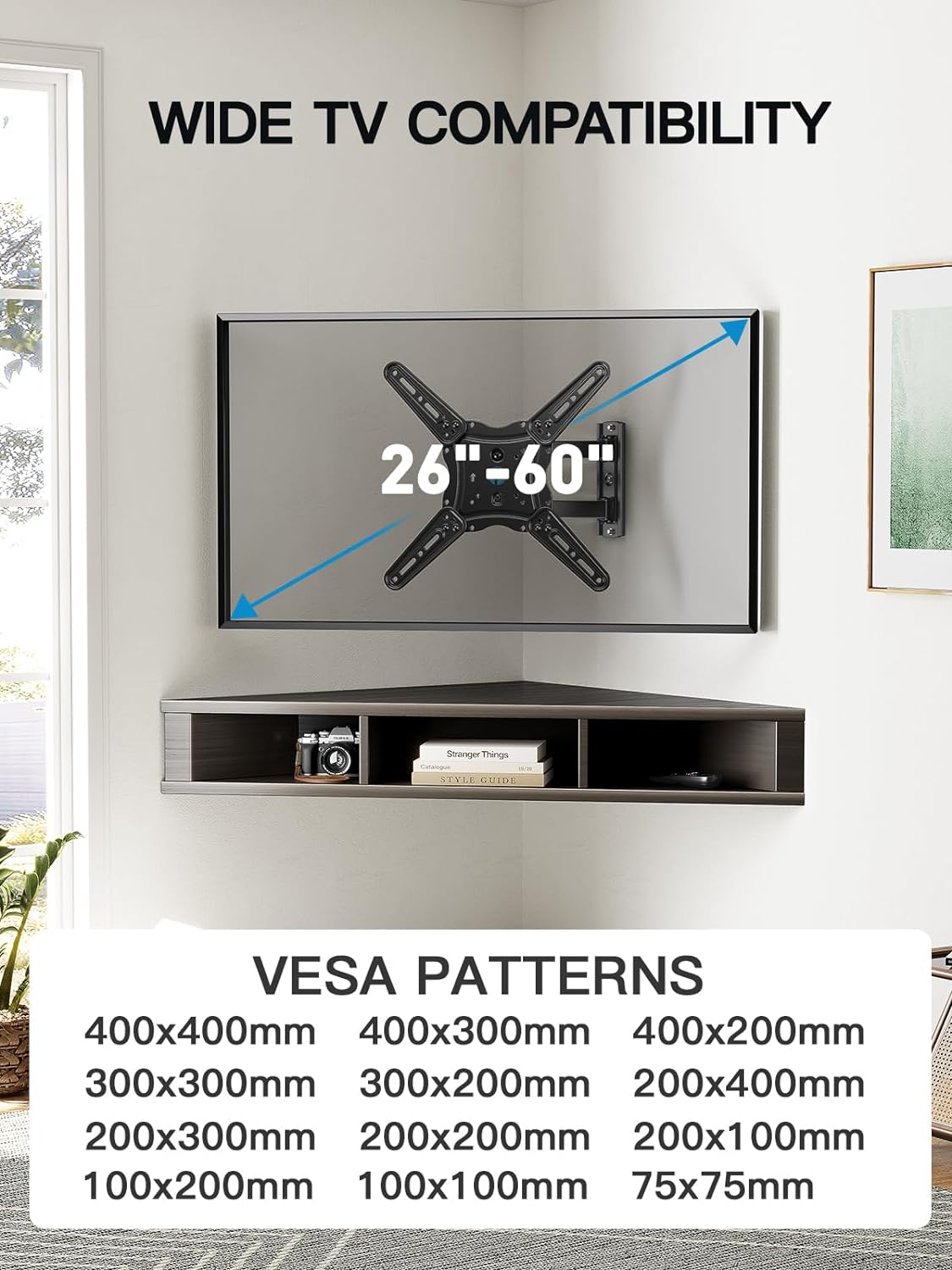

| TV Size & Max Load | Fits 26" to 60" flat panel 4 K/ LED/ LCD TVs/monitors and supports TV weight up to 77lbs |
| Wall Type | Single wood stud wall, concrete wall, brick walls, DO NOT install on drywall alone |

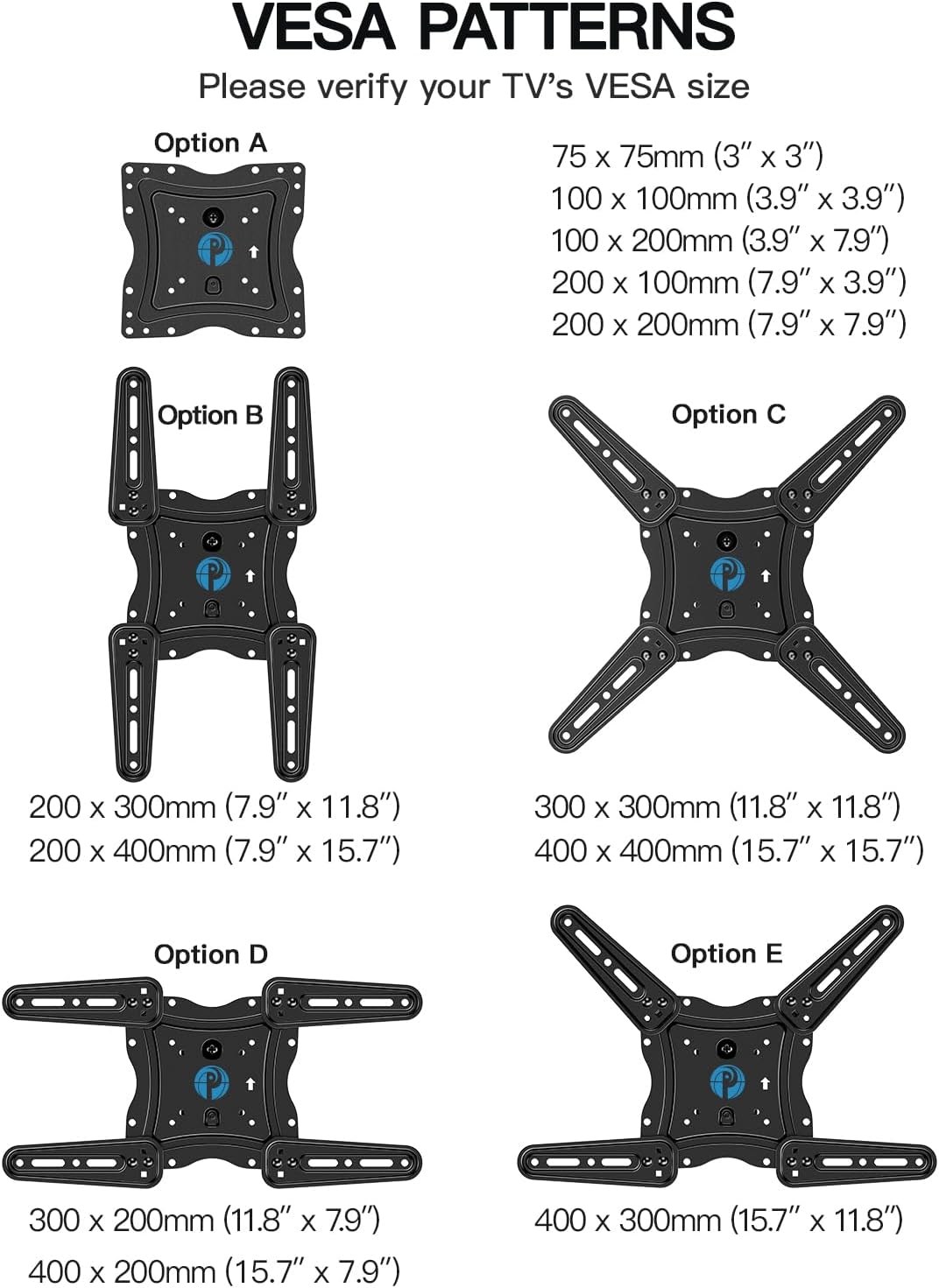

| VESA Pattern | 400X400mm. 400x300mm. 400x200mm. 300x300mm. 300X200mm. 200x200mm. 200x100mm. 100x100mm. 75x75mm (In inches: 16"X16"/16"x12"/16"x8"/12"x12"/ 12"x8"/8"x8"/8"x4"/4"x4"/3"x3") |
| Distance to wall | 2.36" -17" |
| Mounting Holes | 4 mounting holes without any cables outlet. Otherwise, the plate may block the plugs |
