Fits TVs
13" to 42"
VESA Range
75x75mm to 200x200mm
Extension
14.59" (370mm)
Tilt +9°/-11°
Swivel +90°/-90°
Weight Capacity
44 lbs (20 kg)

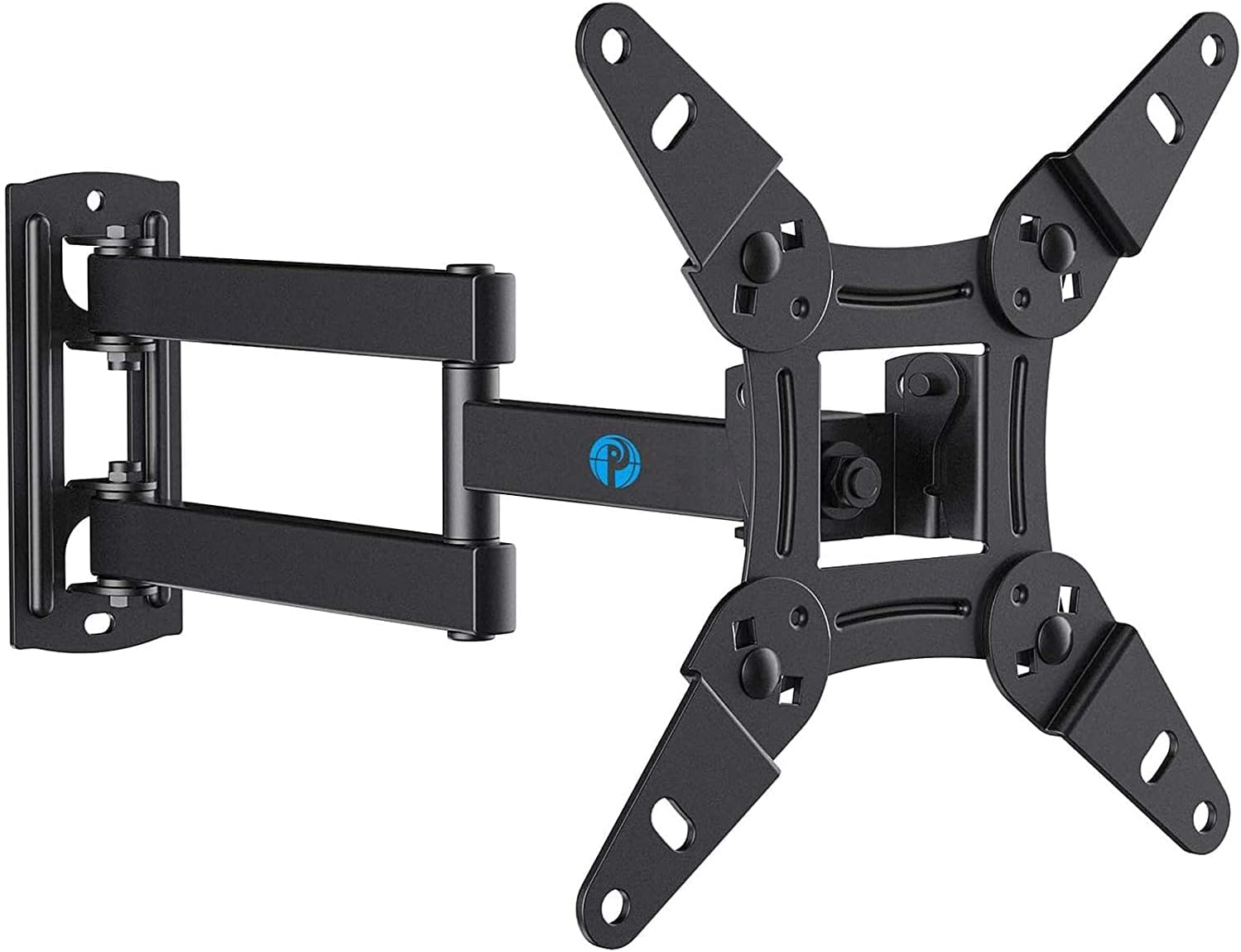

1. PISF1-C full-motion design enables you to adjust the angle of your TV based on your viewing position in the room.

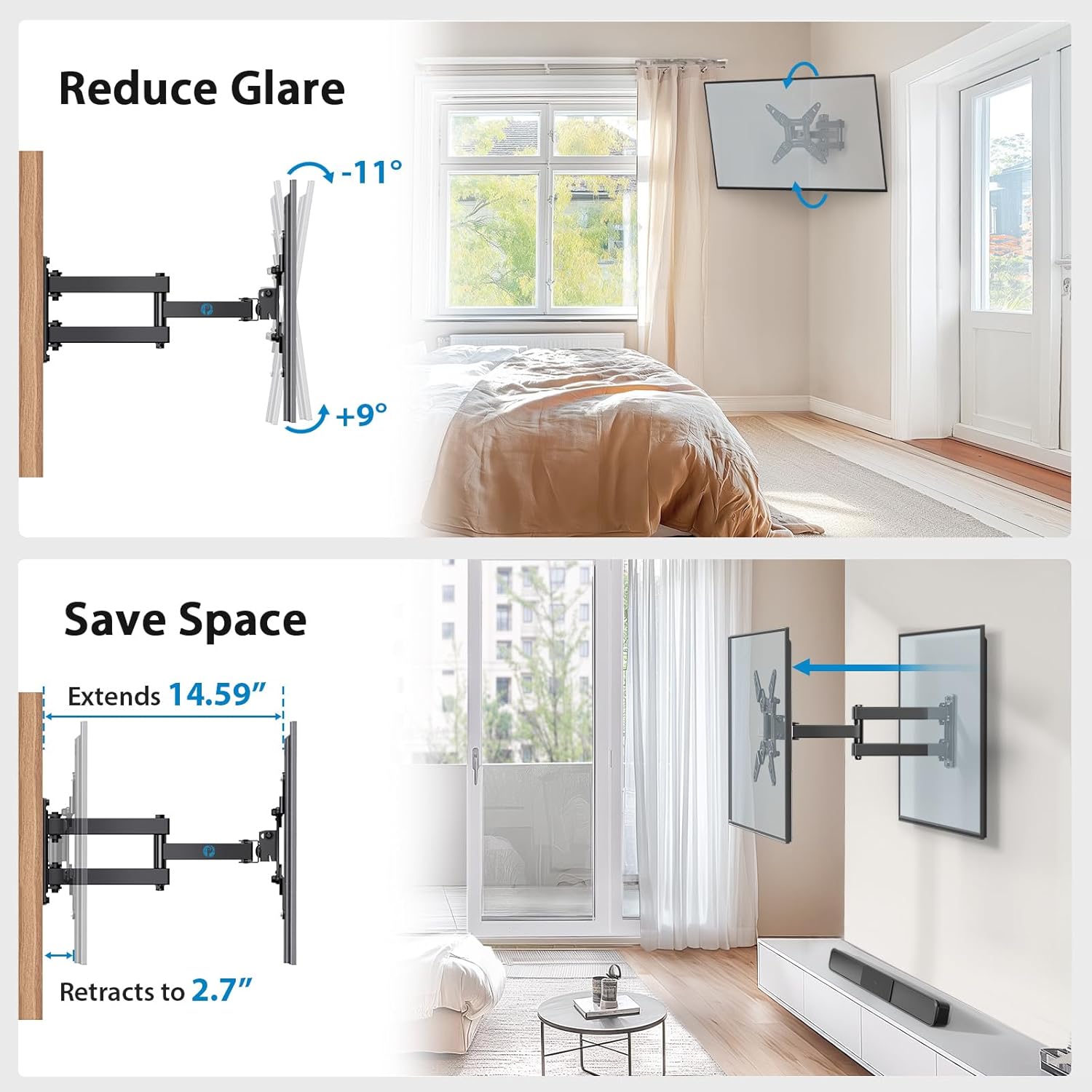

2. Low-profile design extends from 2.7" (69mm) to 14.59" (370mm) from the wall.
3. Maximum flexibility tilt +9°/-11°, swivels +90°/-90° (max. swivel angle depends on TV size) and a fluid level adjusts for perfection tweaking.
4. The VESA transfer plate rotates 360° from landscape to a portrait view.
5. VESA compatible from 75x75mm to 200x200mm with a weight capacity of 44 lbs (20 kg).

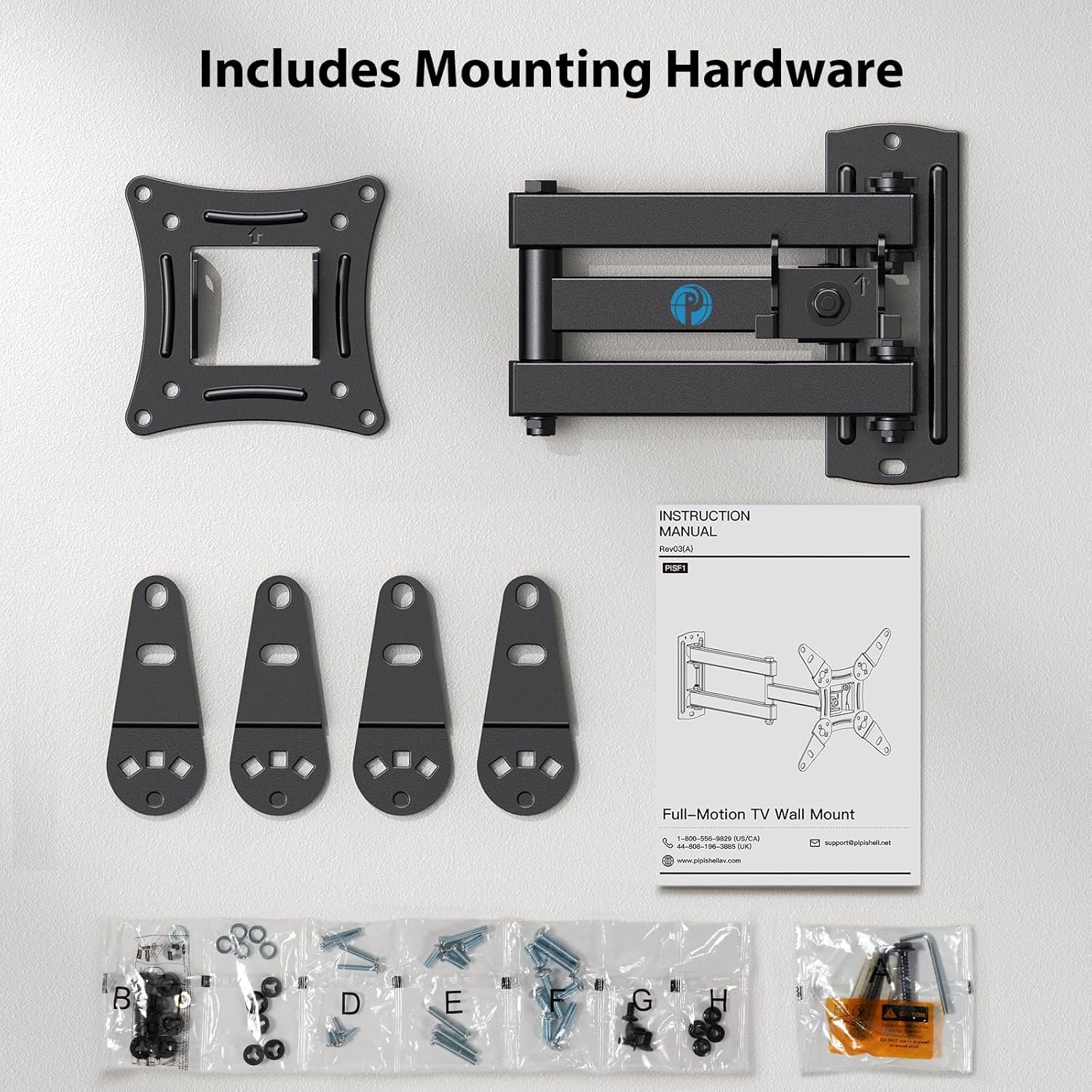

6. Mounting hardware and a detailed illustrated installation manual is included.
7. 5-year Limited warranty and professional product support.
| Product Compatibility | |
| Brand | PIPISHELL |
| Model Number |
PISF1-C
|
| Type | Full Motion |
| TV Size Range |
13" to 42" |
| Maximum TV Weight | 44 lbs (20 kg) |

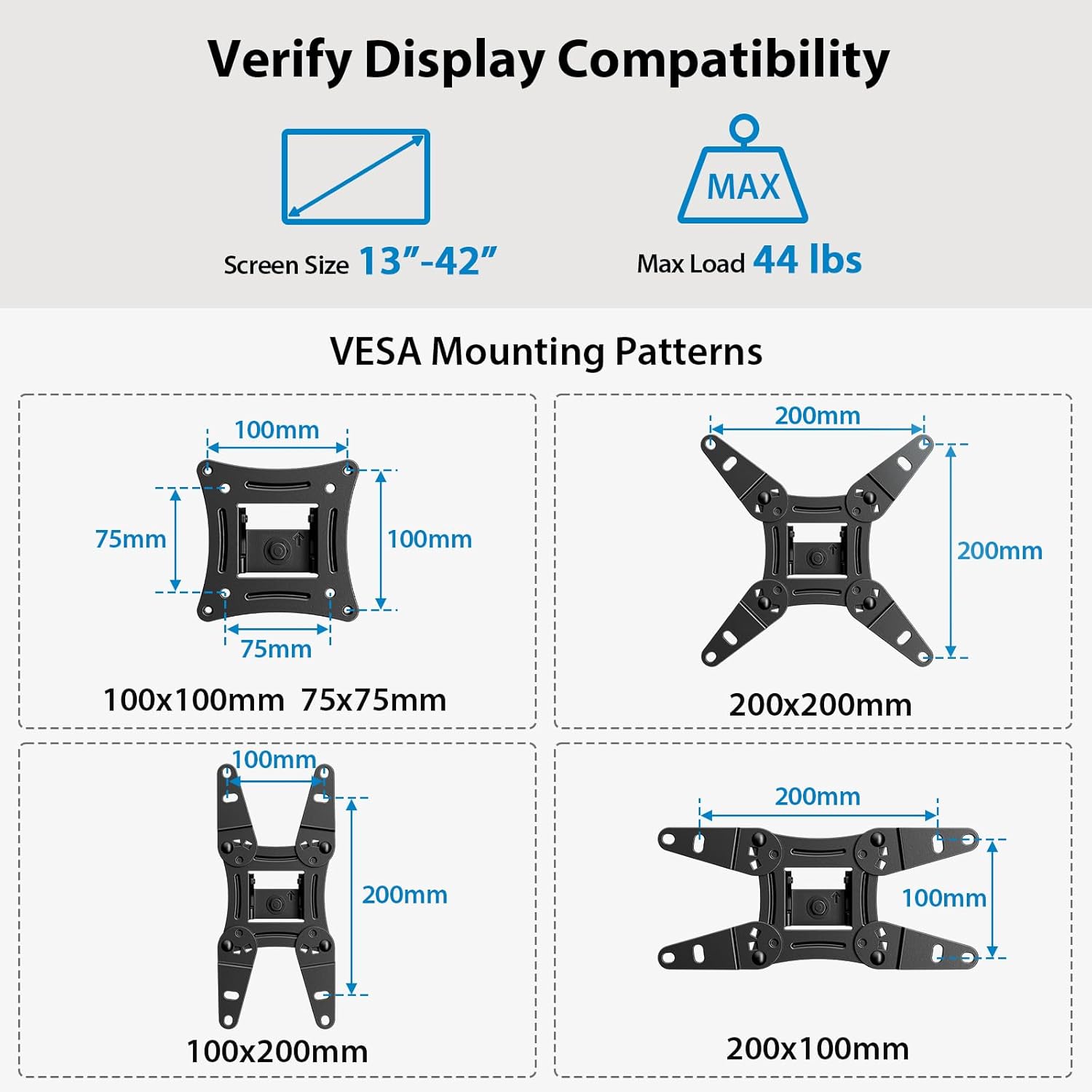

| VESA Range | 75x75mm/100x100mm/100x200mm/200x100mm/200x200mm |

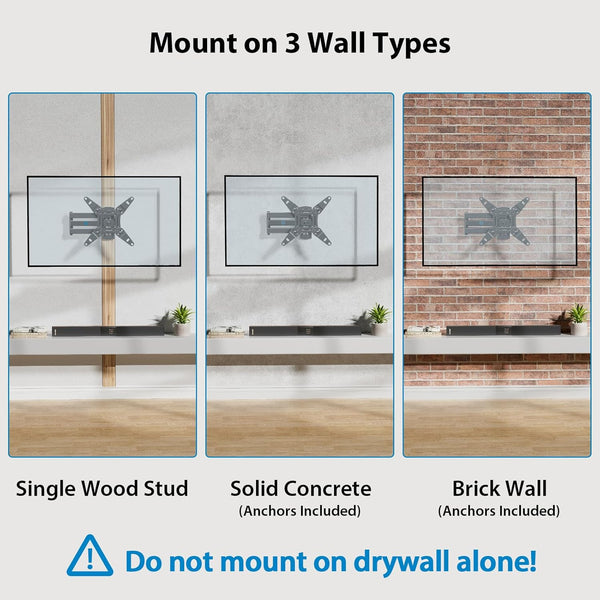

| Wall Type | Single Wood Stud, Concrete and Block Walls |
| Product Information | |
| Swivel | +90°/-90° |
| Tilt | +9°/-11° |
| Profile | 2.7" (69mm) |
| Extension | 14.59" (370mm) |
| Rotation | 360° |
| Wallplate Dimensions | 5.91" x 2.44" (150mmx62mm) |
| Product Weight | 2.31 lbs (1.05 kg) |
| Package Dimension | 9.8" x 6.89" x 2.44" (249mm x 175mm x 62mm) |
